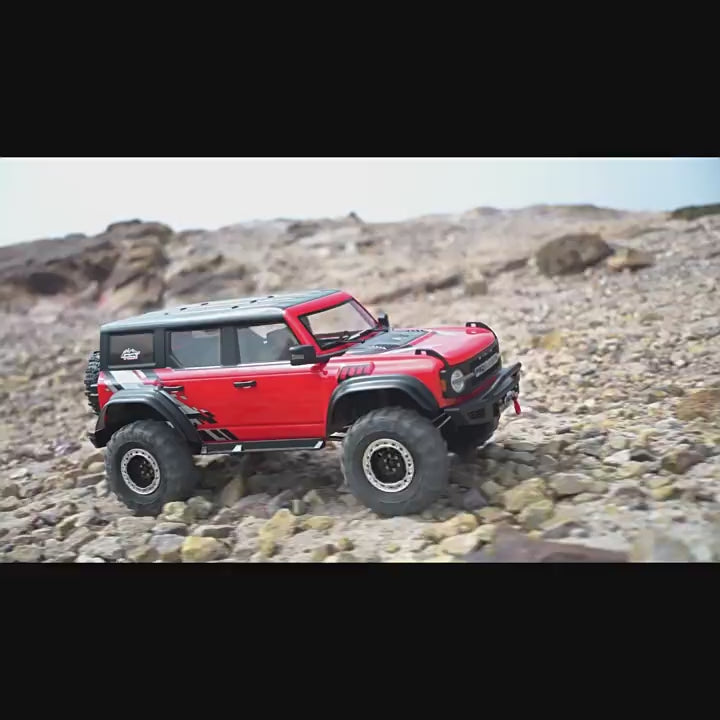

RGT EX86130 PRO Runner 1/10 4WD Raptor-Style High-Performance RC Crawler – RTR

Experience next-level scale crawling with the 2023 RGT EX86130 PRO Runner, a 1/10 scale 4WD off-road vehicle inspired by aggressive Raptor-style design. Built for both rugged performance and striking realism, the EX86130 features a detailed hard body shell, functional LED lighting system, and scale interior details.

Under the hood, it's equipped with a powerful brushed motor, waterproof Hobbywing 60A ESC, and a two-speed transmission system for flexible control over various terrains. The full-time four-wheel-drive system, oil-filled shocks, and metal gear differentials ensure excellent articulation and traction on rocks, trails, and steep inclines.

With portal axles for increased ground clearance, high-torque steering servo, and beadlock wheels wrapped in soft rubber tires, the EX86130 delivers both crawling finesse and aggressive trail capability. It comes ready-to-run (RTR) with a 2.4GHz radio system and is compatible with 2S or 3S LiPo batteries for extended playtime and customizable performance.

Whether you're a seasoned crawler or a scale truck enthusiast, the RGT EX86130 PRO Runner offers the perfect blend of durability, style, and off-road excitement right out of the box.

⚙️ Technical Specifications – RGT EX86130 PRO Runner

📏 Dimensions & Scale

• Scale: 1/10

• Length: 512 mm

• Width: 240 mm

• Height: 241 mm

• Wheelbase: 313 mm

• Ground Clearance: 73 mm (chassis), 35 mm (axle)

• Approach Angle: ~55°

• Departure Angle: ~58°

• Ramp Angle: ~29°

🚗 Drive & Transmission

• Drive Modes: Selectable 2WD (front-wheel drive) and full-time 4WD with rear axle DIG lock

• Transmission: Two-speed gearbox with front–rear speed differential (~6%)

• Gear Ratios:

  • Low speed: 53:1 (front), 57:1 (rear)

  • High speed: 28:1 (front), 30:1 (rear)

🛠️ Chassis & Build

• Chassis: Hardened stainless-steel ladder frame

• Axles: Solid front and rear axles with built-in caster angle; CNC-machined steel spiral gears

• Driveshafts: Steel universal (#1144 CVD), front and rear

• Linkage Rods: 6 mm diameter solid metal links

• Ball Ends: Heavy-duty reinforced nylon

🧰 Suspension & Wheels

• Shocks: CNC aluminum alloy oil-filled, adjustable twist-type dampers

• Tires: 110 mm diameter × 40 mm width, multi-terrain tread

• Wheels: 1.9″ beadlock two-piece design

🔌 Electronics

• Motor: Brushed RC550 35T motor (model 6235)

• ESC: Hobbywing WP‑1060, waterproof, 60 A, supports 2S–3S LiPo

• Steering Servo: Digital, metal-gear, 25 kg torque, axle-mounted

• Winch Servo: 25 kg metal-gear, with 360° control, 90 cm steel cable

• Radio System: 6-channel 2.4 GHz transmitter and receiver

💡 Body & Lighting

• Body: Raptor-inspired PC soft shell

• Color Options: Flame Orange, Graphite Green, Sapphire Blue

• Mounting: Hidden post design with magnetic lock

• Details: Molded interior, clear windows, scale mirrors, handles, light buckets

• Lighting: Multi-mode LED system with high/low beams, turn signals, brake/reverse lights

⚖️ Weight & Package

• Weight (without battery): ~3.03 kg

• Weight (with packaging): ~5.14 kg

• Package Dimensions: Approx. 60 × 30 × 28 cm
